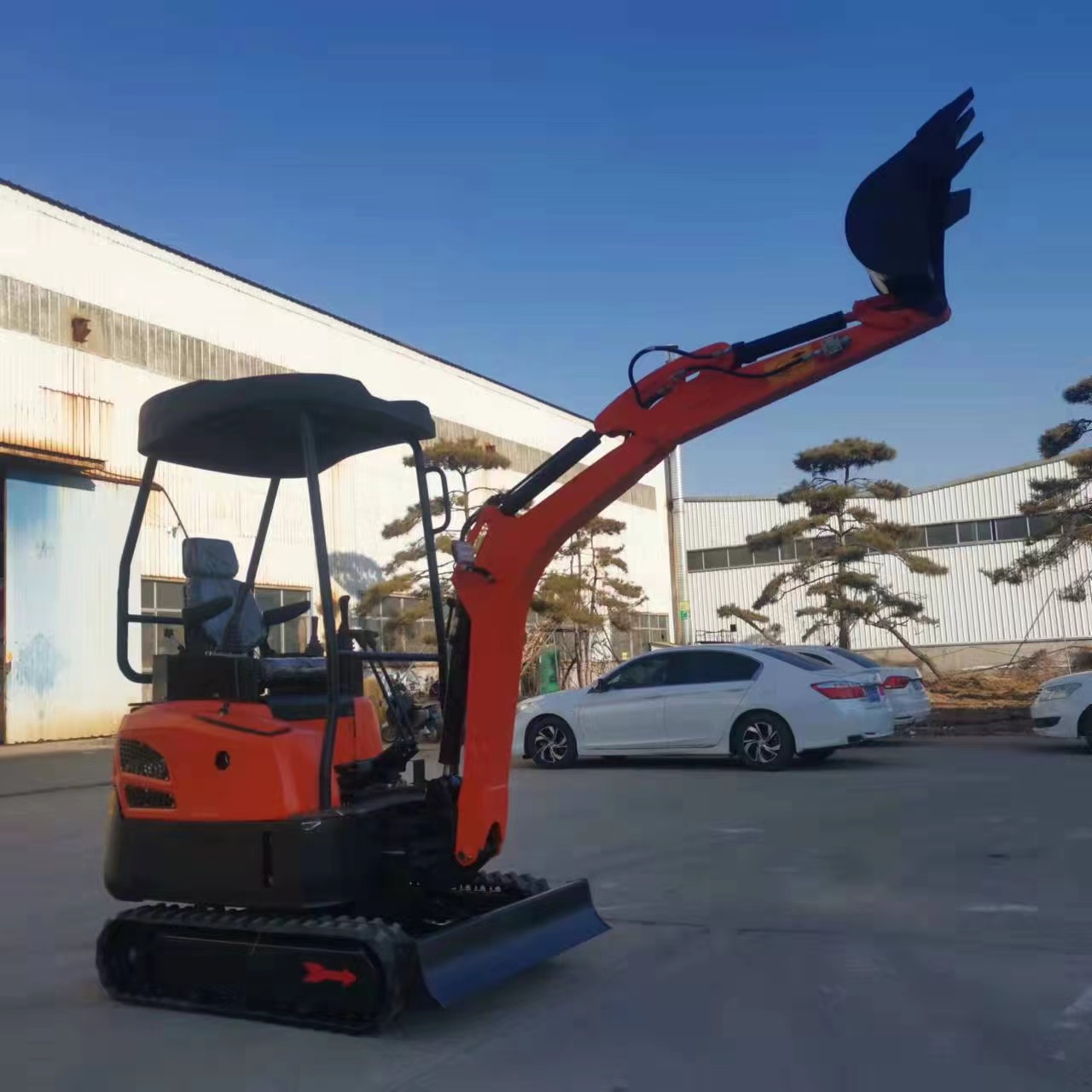

Mini Excavator Rhinoceros
The 1.8-ton small excavator King18 is at current the most typical small excavator. It is geared up with the present day Japanese KUBOTA diesel engine. It is simple to characteristic and powerful. It is exceptional for construction, backyard restoration, avenue restoration and one-of-a-kind enchancment groups.
Global Recruitment Partners
The 1.8-ton small excavator has been presented to 28 countries which consists of the United States and Europe. It has CE EPA certificate, adopts German manufacturing technology, and has greater quality. It has been used for greater than 10 years and the assurance length is 1 year.
1.8 tons of small excavator parameters
| ENGINE | |
| Emission Standard | Tier 5/ Stage V |
| Make | Laidong/ Kubota |
| Model | 385/ D722 |
| Power /Rotation speed | 18.2KW/10.2kw14HP)2500rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 4km/h |
| Width of track shoe | 230mm |
| Number of track shoe per side | 38pcs |
| Number of upper roller per side | 1 |
| Number of bottom roller per side | 3 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.03m³ |
| Swing speed | 9 rpm |
| Max. Grade ability | 35° |
| Maximum Bucket digging force | 18KN |
| Maximum Arm digging force | 11KN |
| Hydraulic system pressure | 18.2Mpa |
| Machine weight | 1650kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 2550*1100/1400*2310mm |
| Wheel base | 1100mm |
| Chassis width | 1100mm |
| Axle base(Track length on ground) | 1300mm |
| Track width | 180mm |
| Min.Ground clearance | 380mm |
| WORKING RANGE | |
| Maximum Digging height | 27400mm |
| Maximum Dumping height | 2100mm |
| Maximum Digging depth | 2150mm |
| Maximum Vertical digging depth | 2320mm |
| Maximum Digging radius | 2400mm |
| Minimum swing radius | 1190mm |
| Maximum Lifting height of blade | 325mm |
| Maximum Cutting depth of blade | 175mm |
| Boom swing angle(Left) | 75° |
| Boom swing angle(Right) | 45° |
The 1.8 ton small excavator can be geared up with a wide variety of accessories, in order to total pretty a range difficult jobs, we produce a vary of accessories, which encompass buckets of a range of sizes, augers (drilling, digging) hydraulic thumb clamps (clamping wood) fast alternate (replacement accessories)
Hammer (chisel stone)
1.8 tons small excavator video
The 1.8-ton small excavator is packed in a wooden box, which can greater protect the laptop from being damaged at some factor of transportation. The container is being shipped for the dealer. The larger the quantity, the limit the cost. Welcome to are trying to find recommendation from
